Product Introduction

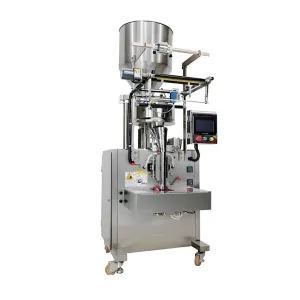

The Top Coffee Packing Machine represents cutting-edge vertical form-fill-seal (VFFS) technology optimized for specialty coffee powders and whole bean packaging.Engineered with servo-driven precision mechanisms, this system achieves 45-60 pouches/minute throughput while maintaining ±0.3g weight accuracy—critical for premium coffee portion control.Its modular design accommodates diverse packaging formats from single-serve sachets (2-5g) to commercial 1kg retail bags, featuring nitrogen flushing options for extended shelf life.The SUS304 stainless steel construction meets ISO 22000 food safety standards, with particular attention to preventing flavor cross-contamination between batches.

Technical Specifications

Core Performance Metrics

• Model Variants: TCP-300 (standard) / TCP-300N (nitrogen-flush version)

• Bag Capacity Range: 2g-1kg adjustable via quick-change auger kits (default calibration for 250g±0.5g)

• Film Handling: Compatible with biodegradable PLA/PBAT laminates (70-200μm thickness) and quad-seal stand-up pouches

• Weighing System: Multi-head linear weigher (8 buckets) with vibration compensation technology

• Gas Flushing: Optional 99.5% purity nitrogen injection at 5-10L/min flow rate

• Sealing Integrity: Four-side ultrasonic seals withstand 0.8bar internal pressure for degassing valve compatibility

• Operational Efficiency: 3.8kW power consumption with energy recovery during deceleration phases

Advanced Features

• Aroma Preservation: Activated carbon filters in exhaust system capture volatile organic compounds

• Smart Rejection: AI vision system detects and ejects misaligned print registration (±0.5mm tolerance)

• Hygienic Design: CIP-ready with 3A sanitary standards for food-grade silicone gaskets

Application Scenarios

Specialty Coffee Roasters

Packaging single-origin micro-lots with batch traceability QR code printing

Instant Coffee Production

Handling hygroscopic powders with<3% moisture content through anti-static filling nozzles

Private Label Contract Packing

Rapid format changeovers between 100g brick packs and 500g flat-bottom pouches within 15 minutes

Sustainable Packaging Lines

Compatible with compostable films and recycled aluminum foil laminates

Operating Manual

Pre-Production Setup

1. Material Preparation

   Preheat hopper to 35°C for oily coffee varieties to prevent clumping

   Calibrate load cells using NIST-traceable 250g test weights

2. Film Threading Protocol

   Route film through dancer rollers with 2-3N tension, ensuring photoelectric eye alignment

3. Production Cycle

   Pouch Formation

   Rotary collar creates gusseted base for stand-up pouches

4. Auger Filling

   Twin alternating augers achieve 98% fill rate at 1.2kg/sec throughput

5. Quality Control

   Checkweigher automatically adjusts auger RPM based on 50-sample moving average

Maintenance Schedule

• Daily: Sanitize product contact surfaces with food-grade ethanol

• Weekly: Inspect auger flights for wear using 0.5mm feeler gauge

• Quarterly: Replace servo motor brushes after 2,000 operating hours

Troubleshooting Guide

Frequent Operational Challenges

1. Static Cling in Powder

   Solution: Install ionizing bars at filling nozzle and increase RH to 45-50%

2. Degassing Valve Misalignment

   Solution: Adjust valve placement arm with 0.1mm precision hex key

3. Nitrogen Purity Alerts

   Solution: Replace molecular sieve filters every 6 months

FAQ Section

Q1: Minimum film width for stand-up pouches?

Requires 220mm minimum web width for 100g pouches

Q2: Can it handle flavored coffee with oils?

Yes, with Teflon-coated augers and heated hopper walls (40-60°C range)

Q3: Warranty coverage for high-altitude operations?

Special altitude compensation modules available for >1,500m ASL locations

Q4: Integration with roasting line PLCs?

Supports Modbus TCP/IP protocol for real-time batch data synchronization

Sustainability Features

• Material Efficiency: Laser-guided film cutting reduces waste by 12% versus mechanical knives

• Energy Recovery: Regenerative drives feed 18% of braking energy back into grid

• End-of-Life: 94% recyclable stainless steel construction with RoHS-compliant electronics
